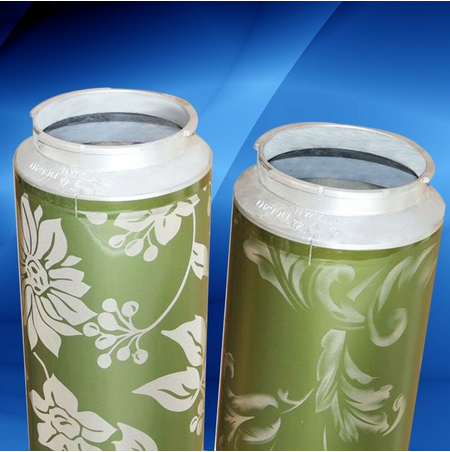

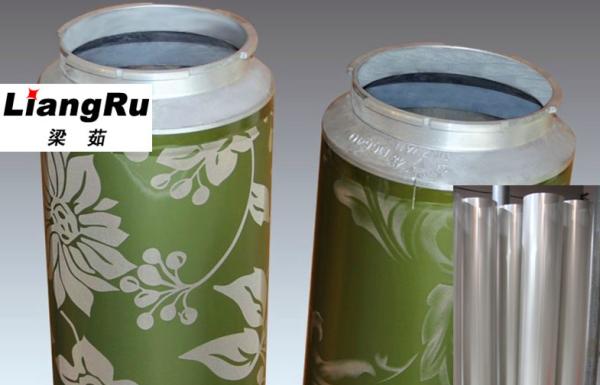

Nickel screen with variety specifications Textile Machinery Spare Parts Tube Mesh
Specification:
| Repeat(MM) | 640 819 914 1018 |
| Mesh | Thickness(μm) | Open Area(%) | Hole Diameter |
| 80 | 110-115 | 16-18 | 105 |
| 100 | 105-110 | 15-17 | 94 |
| 125 | 100-105 | 14-16 | 79 |
| 125V | 100-105 | 14-16 | 79 |
Nickel screen with variety specifications and good tenacity, can be repeatly used for several times,suitable for any kind of dyestuff,with even inflitration,it can fit any pattern,specially good at super fine pattern.
Textile Machinery Spare Parts:
rotary screens for textile printing, endring, photo emulsion, polyester screens
and other spare parts for textile printing and finishing machines. Our rotary screen will not broken ,Our quality for rotary screens is number 1 in China as our technician and engineers are trained by best Technicians, but price is very very competive. so you don’t worry about our quality.
advantage:
Open area up to 18% ,there is no factory in china can make it except our factory,it help smooththroughout of dyestuff paste, so that printing speed and efficiency of printingmachine can be ascended,experiments have proved that up to 19% of paste volumecan be saved at multiple printing mills around the world.
Use 8-10 times stripping by waterjet or LEN,bycollecting the data from thousand of experiments.Our screen also SULFUR-FREEand with excellent brittleness,a convenientway to test the brittleness is the so-called "lighter test": a pieceof screen sample burnt by lighter flame for 10 seconds, bend the screens sampleto see if it breaks at the burnt spot. our screens will not broken.
Our rotary nickel screens are in uniform open area, good toughness and elasticity, uniform transmission of light, Can effectively prevent the printing color difference, uniform thickness, high quality of printing. Strong elasticity make safe operation, Durability, high strength, long life of printing rotary screen mesh, uniform net hole, Precision output pigment, good penetrating quality, high bonding of photo emulsion, printing effect uniform and beautiful.
Textile Machinery Spare Parts Save dyestuff: High density of holes, unique involuted hole shape and minimized nickel dam, the coverage of dyestuff paste on the fabrics has largely increased. For the same amount/intensity of dyestuff deposit on surface of fabric, Less squeegee magnetic roller pressure is required. Experiments have proved that up to 19% of paste volume can be saved.
Delivery time: within 10 to 15 days
Package: plywood cases or as you required
Product Tags:
|
|
Excellent Elasticity Textile Machinery Parts Textile Fabric Nickel Tube Mesh Images
|
